CF Striated®
CF Striated®
The CF Striated® insulated metal panel is an attractive alternative to typical flat wall panels. The exterior face is lightly profiled with narrow longitudinal striations, which create a subtle shadow effect but exhibit a flat appearance from a short distance away. The Striated wall panel is an exceptional value, combining the aesthetics of a flat wall panel with the high insulation ratings of a polyurethane core.
Note: Not intended for exterior walls on cold storage buildings.

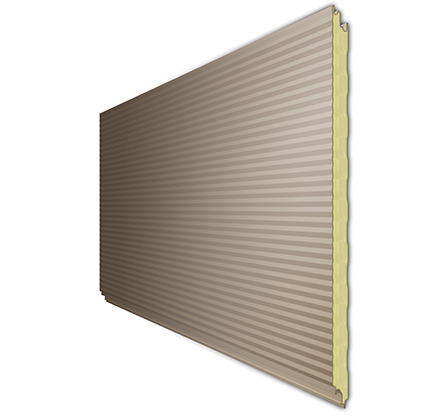

CF Striated® Wall Panel
Panel Profile
Let's talk about your project needs!
Contact UsSPECIFICATION
| Applications: | Panel Systems, Insulated Wall Panel Systems, Insulated Metal Panel Systems |
|---|---|
| Coverage Width: | 24", 30", 36", 42" |
| Panel Attachment: | Concealed Fastening System |
| Gauge: Exterior: | 24, 22 | Interior: 26 (standard); 24, 22 (optional) |
| Finishes: | Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. Optional smooth-unembossed finish Interior Face: Light Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.Finishes: Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. Optional smooth-unembossed finish Interior Face: Light Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga. |
| Coatings: | Signature® 200, Signature® 300, Signature® 300 Metallic, Applied Finishes |
| Length: | 8'-0" to 32'-0" horizontal embossed 8'-0" to 16'-0" horizontal unembossed 8'-0" to 40'-0" for 24", 30" and 36" vertical embossed 8'-0" to 32'-0" for 42" vertical embossed 8'-0" to 16'-0" vertical unembossed |
| Thickness: | 2", 2½", 2 ¾"*, 3", 4" |
FEATURES & BENEFITS
| Minor striations provide up-close interest, with a flat appearance at a distance |
| Utilizes concealed clips and eliminates thermal short circuits |
| Easy and fast installation, with reduced construction labor cost |
| Interior and exterior applications |
| Can be used in conjunction with other CF joint profiles |
